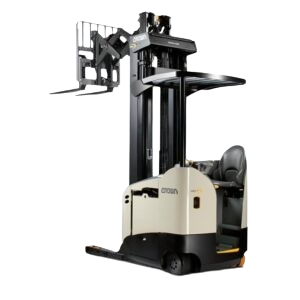

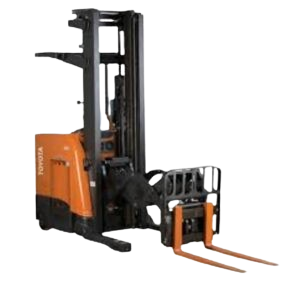

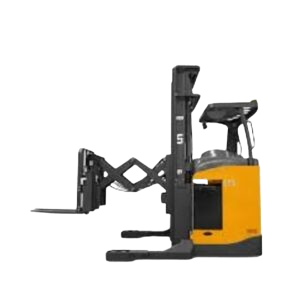

Reach Trucks

Reach trucks are specialized forklifts designed for working in narrow aisle warehouses, typically used for lifting and transporting palletized goods. They are known for their ability to reach higher shelves and work in tight spaces. Here are the key specifications and features of reach trucks:

Specification	Typical Value
Lift Height	Typical range: 20 feet to 40 feet (6-12 meters) High-capacity models: Up to 45 feet (13.7 meters)
Capacity	Typical range: 2,000 to 4,500 kg (4,400 to 10,000 lbs) Heavy-duty models: Up to 6,000 kg (13,200 lbs)
Mast Type	Single Mast: Lower lift heights, simpler operation Double Mast: Higher lift heights and greater reach Triple Mast: Extreme reach and height for high storage positions
Turning Radius	Typical range: 1.5 to 2.5 meters (5 to 8 feet) Aisle width: As narrow as 2.4 meters (8 feet)
Power Source	Electric Powered: 24V to 80V batteries Battery types: Lead-acid or lithium-ion
Forks and Reach	Telescoping mast: Extends and retracts for deep racking systems Side-shifting and tilting forks: For precise load positioning
Operator Cabin	Standing operator: Compact and ergonomic cabin Rotating seats: Available in some models for added comfort and efficiency
Drive Type	Front-Wheel Drive (FWD): Common in most models Rear-Wheel Drive (RWD): Used in heavy-duty models for better control
Speeds	Travel speed: 6 to 10 km/h (3.7 to 6.2 mph) Lifting/lowering speed: 0.2 to 0.5 m/s
Dimensions	Length: 2.4 to 3.5 meters (7.8 to 11.5 feet) Width: 1.1 to 1.8 meters (3.6 to 5.9 feet) Height: 2.2 to 3 meters (7.2 to 9.8 feet)

Key Features Of A Reach Truck

Narrow Aisle Design: Compact width allows operation in aisles as narrow as 2.4 meters (8 feet), optimizing storage space.
Telescoping Mast: Extendable mast enables the truck to reach higher shelves (up to 45 feet/13.7 meters), improving vertical storage capacity.
High Lifting Capacity: Lifts from 20 feet to 45 feet (6-13.7 meters) with load capacities ranging from 2,000 kg to 6,000 kg (4,400-13,200 lbs).
Operator Comfort: Standing operator position with ergonomic design; rotating seat for easy directional change and excellent visibility.
Power Source: Battery-powered (24V to 80V), typically using lithium-ion or lead-acid batteries for indoor, emission-free operation.
Fork Positioning: Side-shifting forks and tilt functionality allow precise load handling and adjustment in tight spaces.
Stability and Safety: Anti-tipping mechanisms, load sensors, speed limiters, and overhead guards enhance safety during high-lift operations.
Versatility: Double and triple masts provide greater reach and lift capabilities for tall racking systems.
Speed Control: Moderate travel speed (6-10 km/h) with efficient lifting speed (0.2 to 0.5 m/s) for precise operations.
Durability: Built with strong, durable materials for indoor and light outdoor use, ideal for industrial settings.
Advanced Technology: Features like automated steering, load monitoring, collision detection, and GPS tracking improve efficiency and safety.
Customization: Can be fitted with various attachments like extended forks or specialized lifts for specific needs.

Streamline the process of heavy lifting with ease.

This specification chart outlines the general features of manual hand pallet trucks, but measurements may differ depending on the manufacturer and model. For precise details, refer to the product’s manual or consult a supplier.
