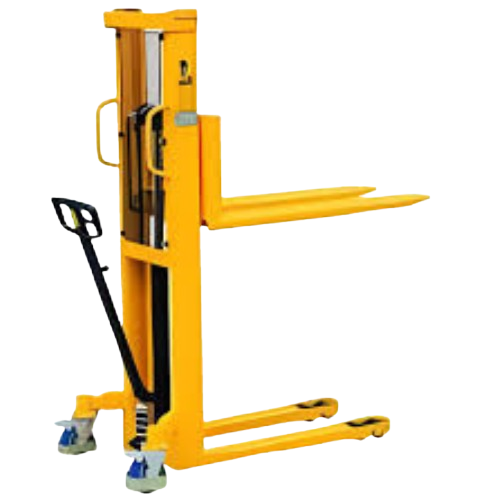

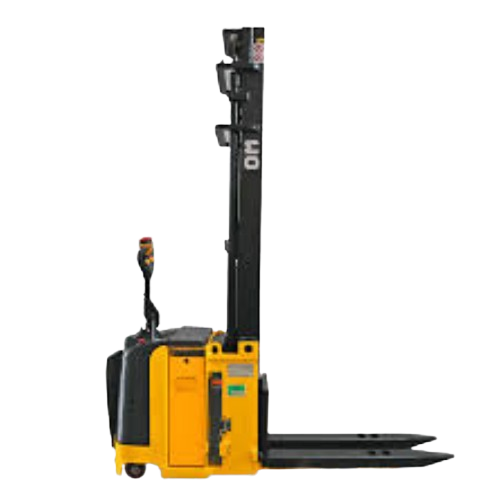

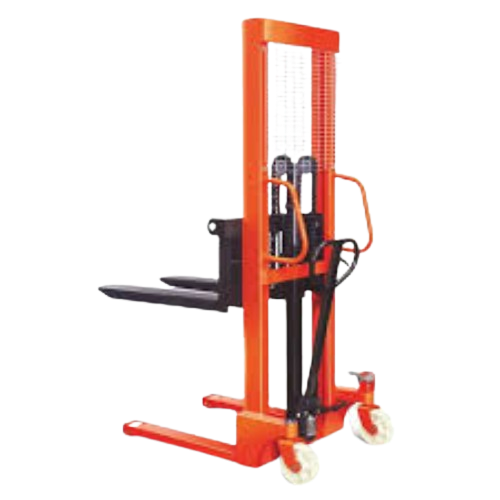

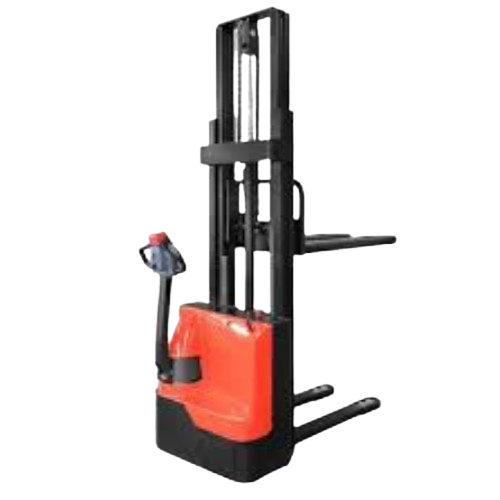

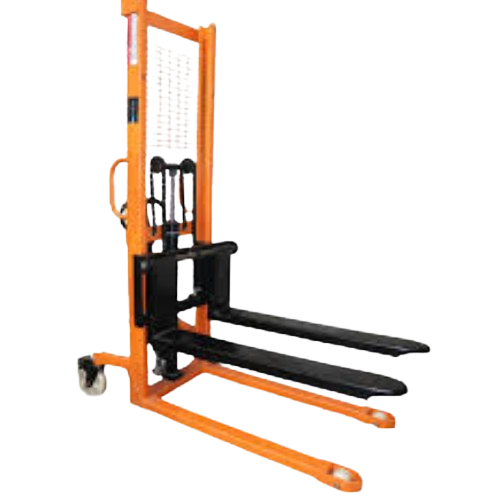

Here is a common specification chart for a stacker (also known as a manual or electric pallet stacker). Stackers are commonly used in warehouses for lifting and stacking pallets and goods. They can be either manual or electric, and their specifications will vary based on the load capacity, lifting height, and power source. Below is a general specification overview for typical models:
| Specification | Typical Value |
| Load Capacity | 1,000 kg to 2,500 kg (2,200 lbs to 5,500 lbs) |
| Lift Height | 1,500 mm (5 feet) to 6,000 mm (20 feet) |
| Fork Length | 1,150 mm (45 inches) to 1,800 mm (71 inches) |
| Fork Width | 550 mm (21.7 inches) to 1,000 mm (39 inches) |
| Overall Length | 1,600 mm (63 inches) to 2,300 mm (91 inches) |
| Overall Width | 800 mm (31.5 inches) to 1,200 mm (47 inches) |
| Chassis Material | Steel |
| Tiller Length | 1,200 mm (47 inches) to 1,500 mm (59 inches) |
| Steering Type | Manual or Electric |
| Turning Radius | 1,500 mm (59 inches) to 2,000 mm (79 inches) |
| Travel Speed (laden) | 4 to 6 km/h (2.5 to 3.7 mph) |
| Travel Speed (unladen) | 6 to 8 km/h (3.7 to 5 mph) |
| Lift Speed (laden) | 0.03 to 0.05 m/s (1.18 to 1.96 inches per second) |
| Lift Speed (unladen) | 0.05 to 0.08 m/s (1.96 to 3.14 inches per second) |
| Weight | 300 kg to 1,200 kg (660 lbs to 2,645 lbs) |
| Battery Voltage (Electric) | 24V, 36V, 48V (depending on model) |
| Battery Capacity (Electric) | 150 Ah to 400 Ah |
| Tire Material | Rubber, Polyurethane, or Pneumatic |
| Ground Clearance | 30 mm (1.2 inches) to 80 mm (3.15 inches) |
Space-Saving Design
Stacker trucks are ideal for working in tight spaces. Their compact design allows them to navigate narrow aisles and stacked storage areas, increasing storage capacity and improving warehouse efficiency.
Enhanced Lifting Ability
Our stacker trucks come with powerful lifting capabilities, allowing operators to lift goods to a higher level and stack them neatly, making them perfect for small to medium-sized warehouses.
Cost-Effective Solution
As a more affordable alternative to forklifts, stacker trucks offer excellent value for money, providing efficient handling solutions without the need for large equipment.
User-Friendly Operation
With easy-to-use controls and ergonomic designs, our stacker trucks allow operators to perform lifting and stacking tasks with minimal effort and maximum comfort, increasing productivity.
This common specification chart provides general details of manual and electric stackers. Specifications may differ based on manufacturer, load type, and specific model. Always refer to the manufacturer’s manual for precise specifications.
We offer reliable a forklift rental solutions for industrial equipment, helping businesses boost productivity with our versatile and high-quality products.
